Processes 300-1200 cells per hour, optimized for the flexible nature of pouch batteries.
±0.05% measurement accuracy ensures consistent quality for pouch battery cells.
Advanced testing protocols specifically designed for the unique characteristics of pouch batteries.

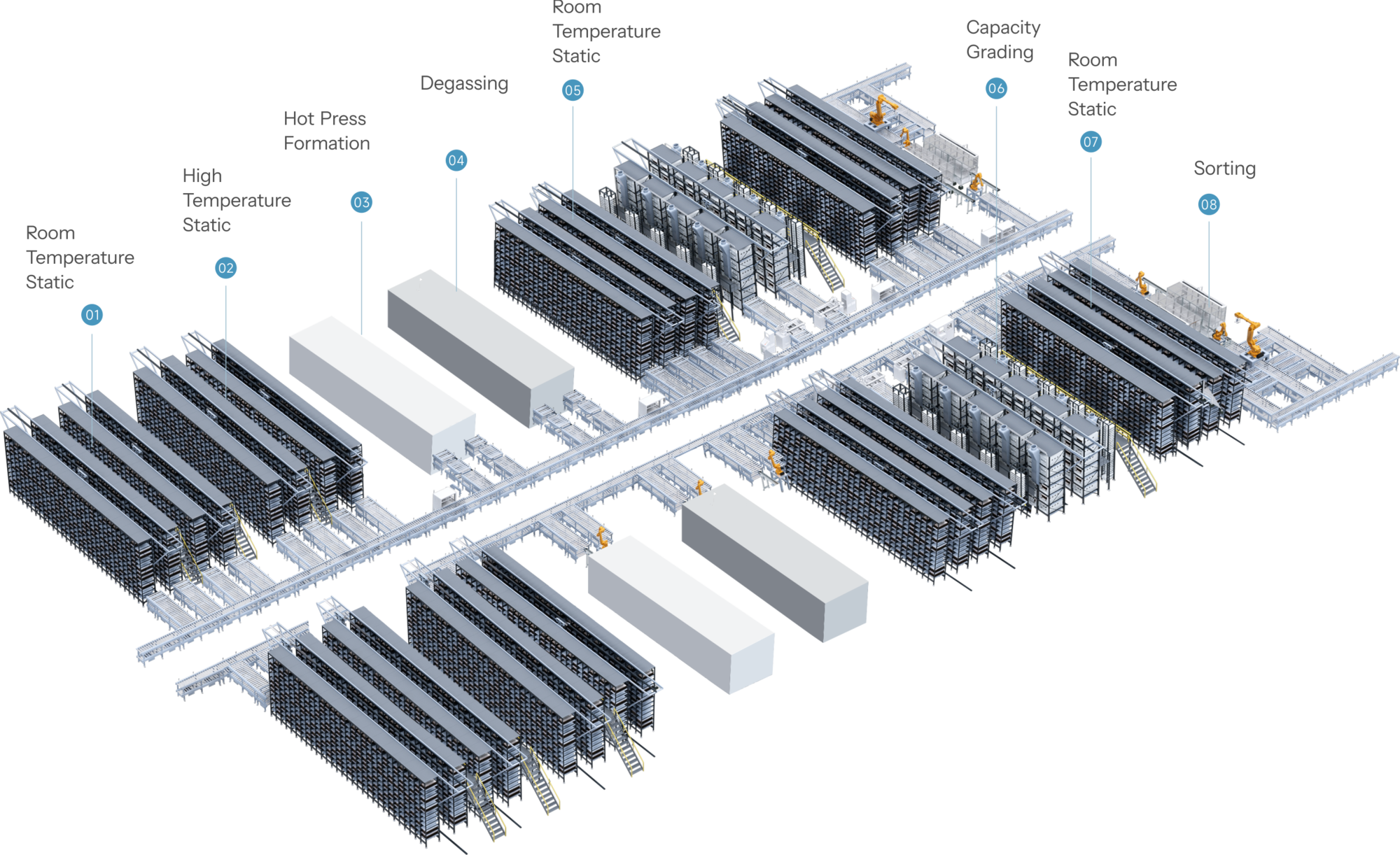

Initial receiving and preparation of battery cell trays for processing
Thermal conditioning of cells at elevated temperatures
Formation process with controlled pressure and temperature
Re-testing process for cells that failed initial quality checks
Measuring and grading cells based on their capacity
Allowing cells to stabilize at room temperature
Removing excess gas from the battery cells
Open Circuit Voltage measurement to assess cell condition
Secondary room temperature stabilization
Combined Open Circuit Voltage and Direct Current Internal Resistance testing
Final sorting of cells based on all collected parameters

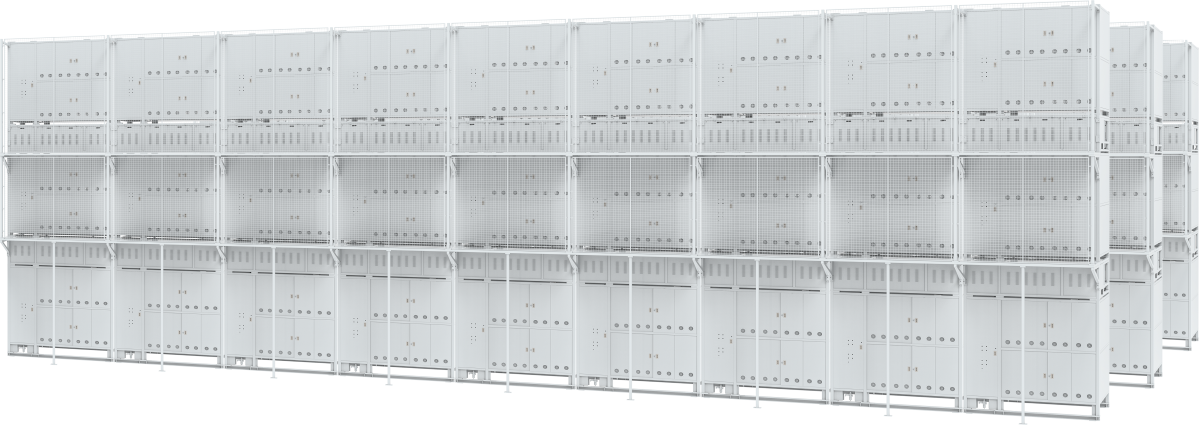

Advantages of our specialized Pouch Battery AFG Production Line.
Integrated design with high space utilization efficiency; Precise temperature control (25±3°C) in grading zone; Easy maintenance without interrupting production; Comprehensive fire protection system for enhanced safety.

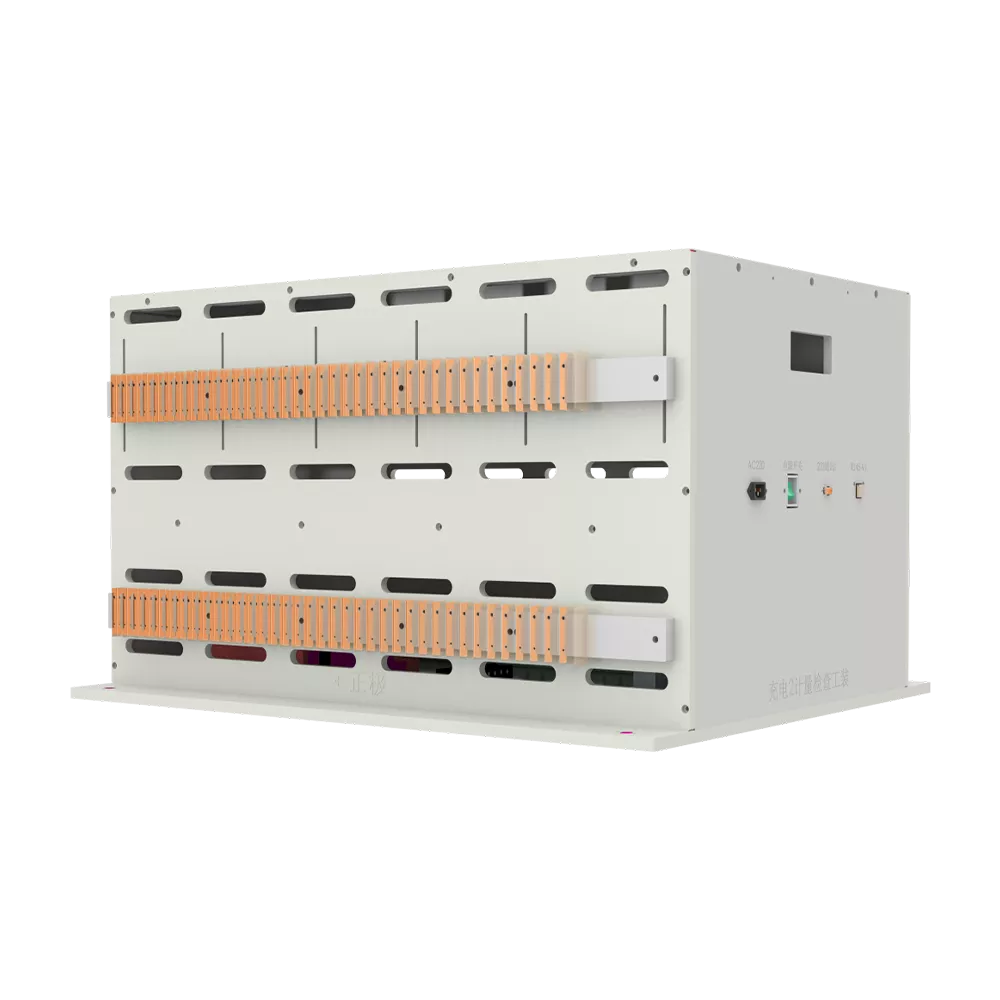

Customized multi-channel auto-calibration capability; Integrated high-precision multimeter with wide measurement range; High-power discharge power supply for large-current calibration requirements; RGV automated calling/auto-calibration with wireless communication.
Dual positioning mechanism with accuracy ≤±1mm; Integrated smoke detection & ambient temperature monitoring; Compatible with both same-side/opposite-side tab pouch cells; Supports rapid model changeover; Meet for high-current testing requirements.

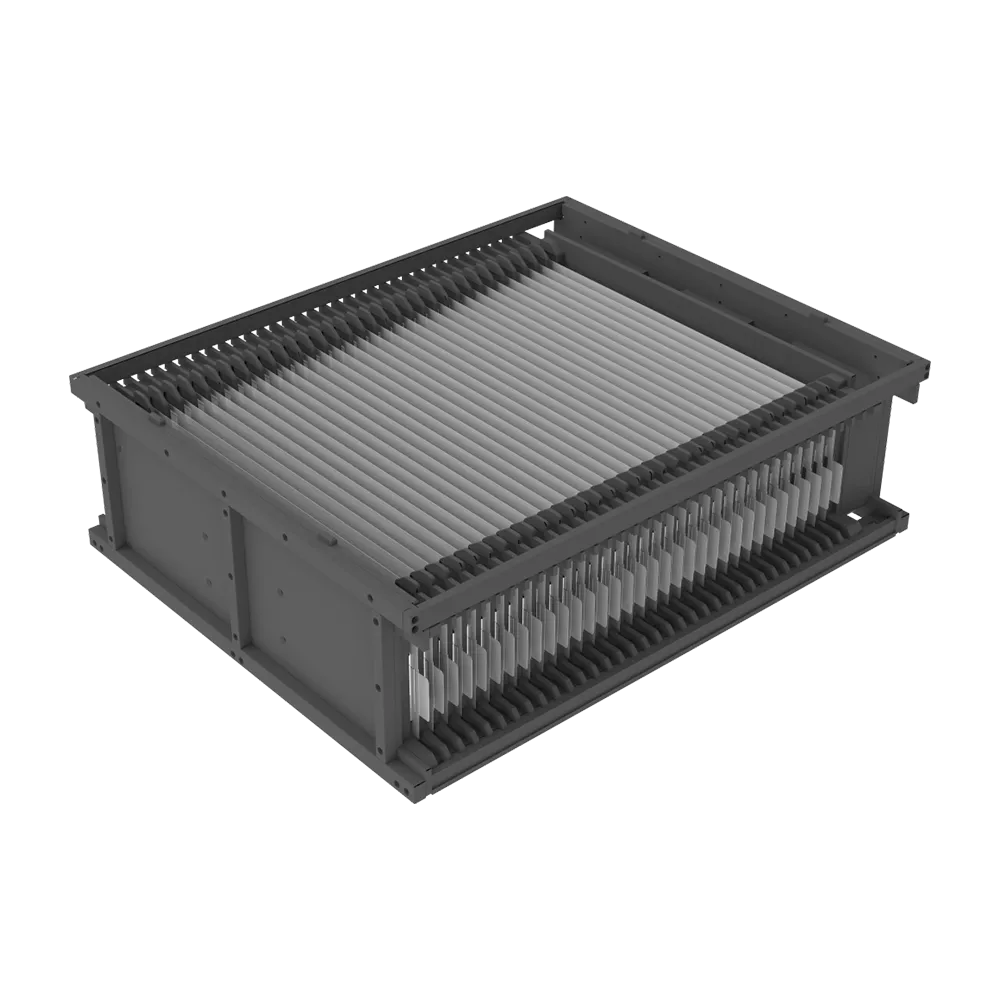

16-24-32-PCS cell/tray
30-400A
Optimize Your Pouch Battery Production
