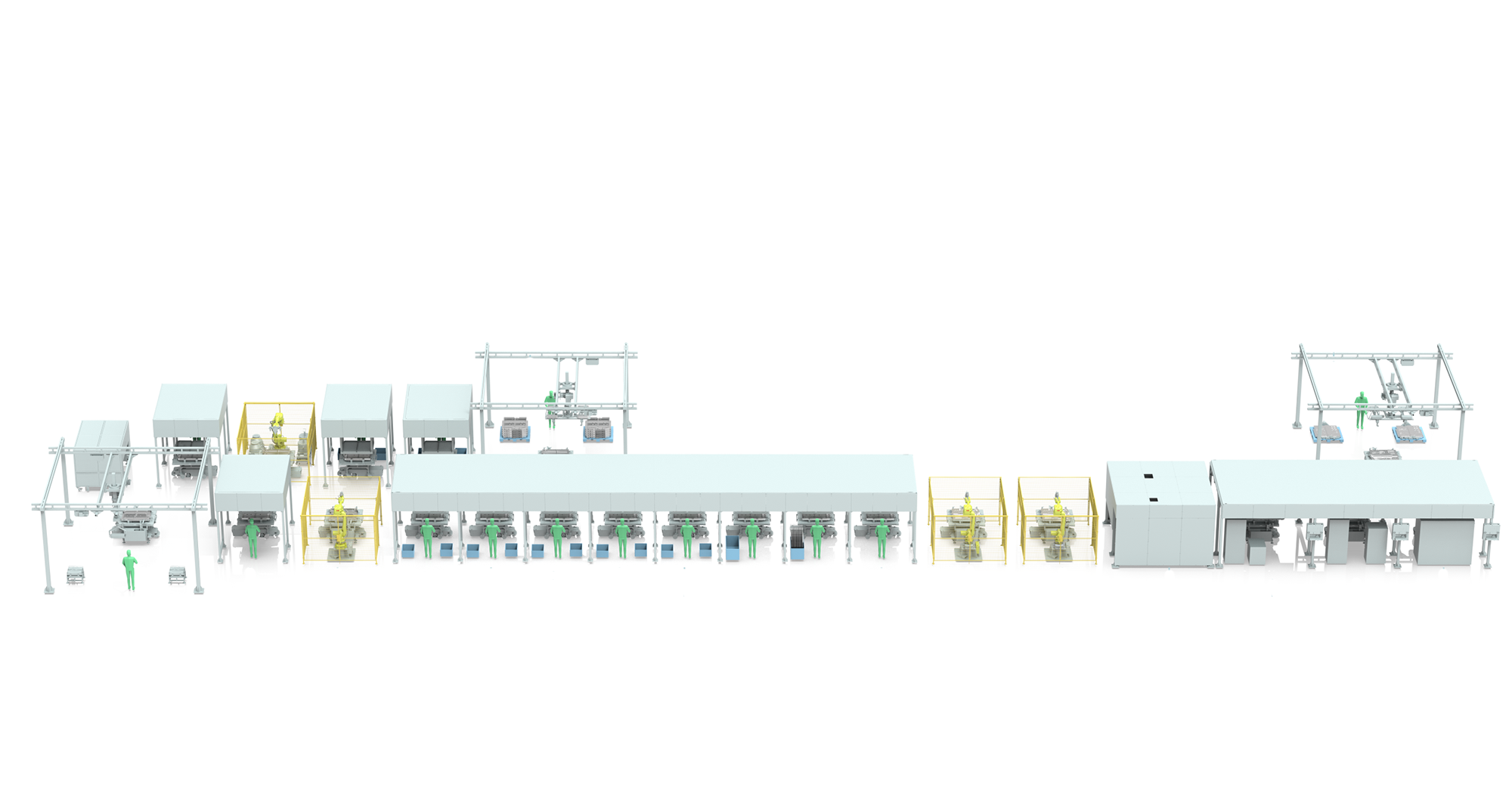

Automated loading of lower battery pack housing
Precise installation of cooling and safety components
Installation of Battery Management System
Manual application of protective patches
Automated optical inspection of components
Automated loading of battery modules into housing
Automated loading of battery modules into housing
Pretightening of screws for modules & lower housing
Automated final tightening of module screws
Installation of low-voltage electrical connections
Installation of high-voltage electrical connections
Installation of protective sealing components
Manual placement of battery pack lid
Pretightening of screws for modules & lower housing
Automated final tightening of lid screws
Verification of battery pack sealing integrity
Initial End-of-Line functional testing
Secondary End-of-Line functional testing
Direct Current Internal Resistance testing
Automated unloading of finished battery packs

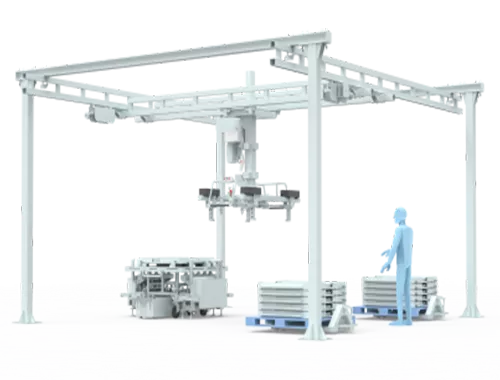

AGV transport cart arrives at designated position to receive PACK. Operator uses spreader to lift PACK and place it on empty cart.

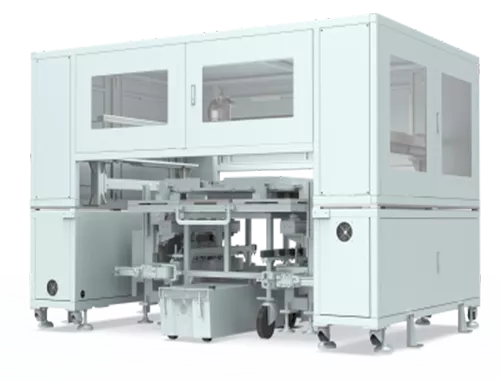

Case gluing inspection, PACK precise positioning; 2KW pixel camera for high-precision addressing and accurate alignment.

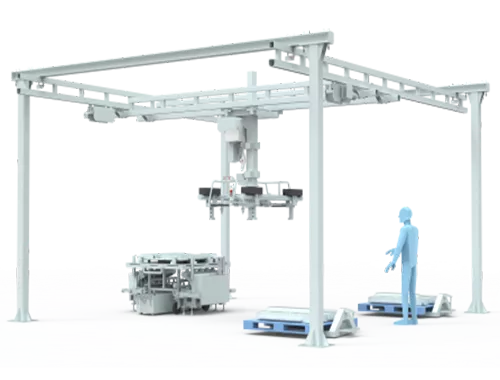

AGV transport cart arrives at designated position. Spreader lifts PACK and places it on unloading pallet; interlock function, laser distance measurement, infrared positioning.

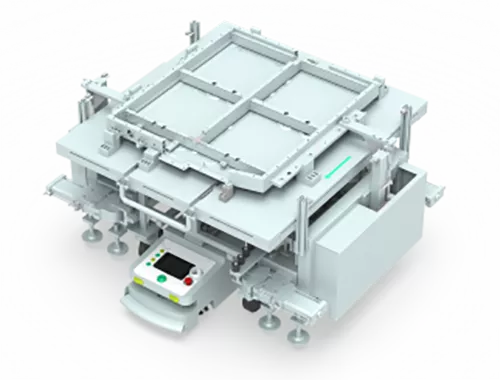

AGV transport carts adopt lifting positioning design for precise PACK positioning.

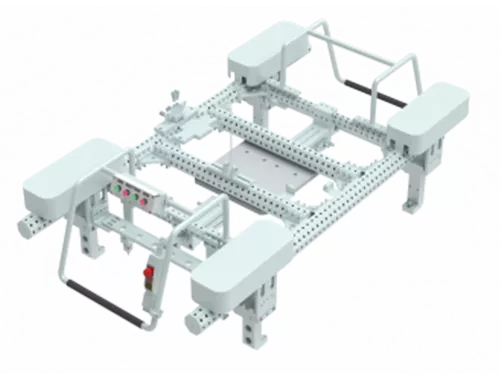

Grippers enable independent clamping, with freely adjustable compatibility range, for module gripping.

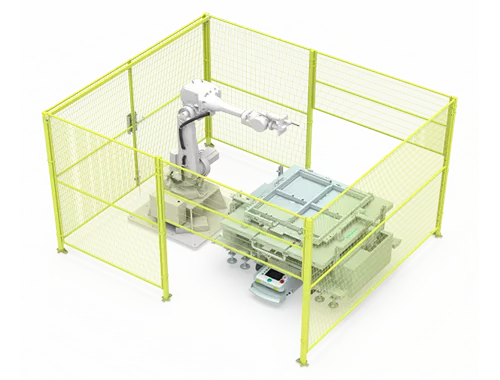

At AGV transport cart & PACK auto-tightening station 6-axis robot enables automatic screwdriving and locking.
Contact us today to learn how our Battery Pack Automated Production Line can help you achieve higher quality, efficiency, and scalability in your manufacturing process.
