Advanced capabilities designed for optimal performance and reliability
The power unit features a modular design for easy disassembly and repair, reducing maintenance time and costs.
Advanced photoelectric switch detector for precise tray positioning and monitoring throughout the production process.
Configured with security doors and observation windows to ensure operator safety while maintaining visibility.
Advanced safety features ensuring reliable operation and protection
Accuracy±0.5°C, stabilization time <8s for temperature changes within 2°C
Ionic smoke detector + CO smoke detector + ambient temperature sensor
PT100 temperature sensor
Response time ≤3s, operating voltage DC24V, operating temperature: -10°C to 55°C

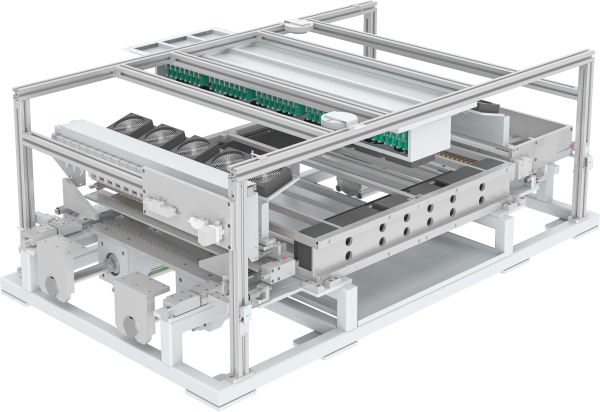

Advanced testing platform designed for precision contact with blade battery terminals
Blade type batteries
±0.05mm
≤5mΩ
Stainless steel + high-performance plastic
Integrated power supply and probe bed design. Supports quick model switching for battery thickness and length. Nozzle structure with intelligent protection system. Custom nozzle structure solves issues of short lifespan and poor airtightness.

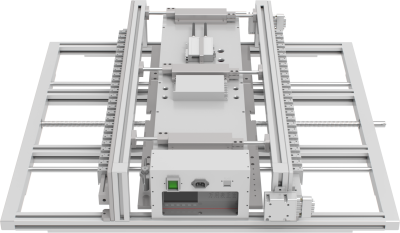

Wire alignment and calibration function. Customized design with multi-channel automatic calibration. High-precision instruments with wide measurement range. High-power supply meets large-current calibration demands. Overcurrent and short-circuit protection.

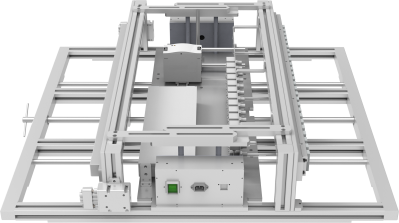

Automatic leak detection. Compatible with batteries within a certain range.

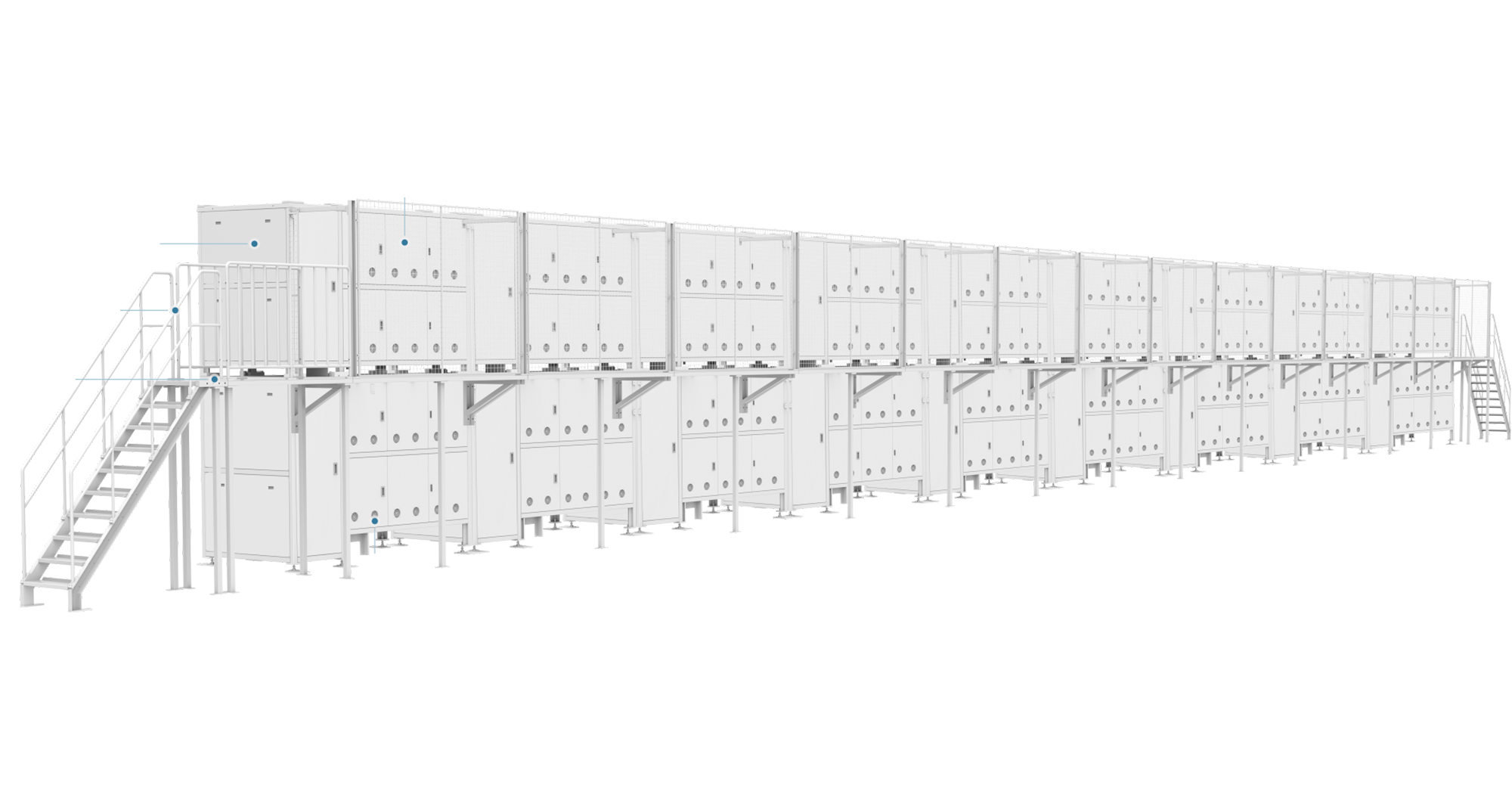

Contact us today to learn how our specialized Blade Battery AFG Production Line can help you achieve higher quality and efficiency in your blade battery manufacturing process.
